Description

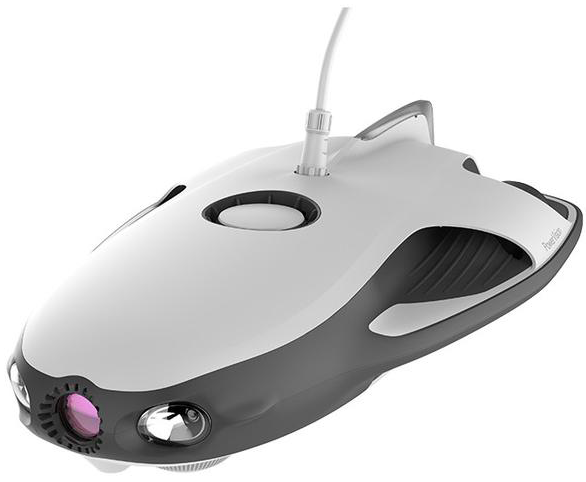

QYSEA FIFISH V6S OMNI-directional ROV

The brand new Qysea Fifish V6S OMNI-directional ROV is similar to the Qysea Fifish V6 in its premium features. As the name suggests, this underwater drone offers 6 degrees of freedom to ensure omni-directionality. Witness the drone’s unprecedented climbs, dives, rolls, pivots and rotations in all directions. Furthermore, the V6S is half the weight of its predecessor, weighing in at 4.1 kg, while being the same size (15x13x5.6). Additionally, improvements to battery life extend drone usage to 6 hours for maximum enjoyment of the aquatic experience. Your favourite features remain, however, the ability to dive to 328 feet below sea level, posture lock and relatively low speeds of up to 5.9 km/h appropriate to accurate capture. Invest in the best that the underwater drone industry has to offer.

MANEUVERABILITY

Space-M, the first multi-directional control system.
Specifically designed for FIFISH V6, the omni-movement system provides 6 DOF (degree of freedom) movement which enables the unit to climb, dive and rotate in 360-degree flips, rolls and pivots in all directions. Additionally, it is equipped with eight separate and powerful vectored thrusters that allows for lateral movement in harsh underwater environments. The drone’s body can reach depths of up to 330 feet, running at a maximum speed of 3 knots and a max drive time of up to 6 hours per charge.

PHOTO/VIDEO

The upgrades on this ROV are fully loaded to capture extraordinary underwater footage. The FIFISH system guarantees a non-blurred zero-gravity vision in water, and its posture lock technology is precise - allowing you to maintain an angle within 0.1° while moving. 166° field of view and powerful 4000-lumen lights with three brightness levels and sunlight technology ensures colorful and natural images below the surface in all lighting conditions.

The camera features a 1/2.3" SONY CMOS sensor, electronic image stabilization, an f/2.5 aperture, a top ISO rating of 6400, 4K UHD video at 25/30 fps, 1080p video with a frame rate as high as 120 fps, the ability to shoot in DNG format, record images to microSD cards up to 64GB or stream your content over Wi-Fi.

The free FIFISH App enables editing, color restoration, soundtrack, and instant sharing.

VIRTUAL EXPERIENCE

Couple exceptional visual capability topside with the FIFISH smart VR integration, motion sensor headset and experience a fully immersive virtual experience that allows you to control what you see with a simple turn of the head.

EASE OF DEPLOYMENT

Weighing in at only 8.6 pounds, the drone’s body is crafted out of rust resistant aluminum alloy and sports a sleek tear drop design built specifically to reduce drag. This makes the FIFISH V6 easy to transport by a single user who can deploy in as little as 3 minutes. The topside controller utilizes a dual-joystick, game console style that provides seamless control in all directions and an adjustable mount for smartphones and tablets.

EXTRAS

Fully Powered Robotic Arm: Extend your reach and capability. Drag, drop, tow, and salvage objects with neutrally buoyant robotic arm and cables - 100N clamping force, with clamp lock function and 100N towing force. This superior towing capacity redefines the operational concepts of compact ROVs.

Comparison Guide

Specifications

ROV

Dimensions	383 mm x 331 mm x 143 mm
Weight	4.1 kg
Thrusters	6 Thrusters
Maneuverability	6 Degrees of Freedom Movement: left & right, up & down, forward & backward Rotation: 360° pitches, 360° rolls, 360° yaws
Posture Lock™	Lock the ± 0.1° pitch or roll angle, in any direction
Hovering	Keep the ROV suspending in ± 1 cm
Speed	Maximum 3.2 knots
Depth Rating	100 M (328 ft)
Temperature Range	-10 °C ~ 60 °C (14 °F ~ 140 °F)
Max Dive Time	Up to 6 hours
Battery	Rated Capacity: 14,400mAh/155.52Wh Charge Voltage: 12.6 V 1 Hour Quick Charge (70%)
Battery Type	Li-ion Panasonic 21700

Camera

Sensor	1/2.3” SONY CMOS
Pixels	12M
ISO Range	100-6400 In Auto / Manual
Lens	Field of View: 166° Aperture: f/2.5 Minimum Focusing Distance: 0.4 m
Shutter Speed	5~1/5000 Second
Burst Shooting	1 / 3 / 5 / 7 / 10 Frames
Exposure Comp.	- 3.0 EV ~ + 3.0 EV
Photo Resolution	4:3: 4000 x 3000
Photo Format	JPEG, DNG
Video Resolution	4K UHD: 25/30 fps 1080P FHD: 25/30/50/60/100/120 fps 720P HD: 25/30/50/60/100/120/200/240 fps
Video Format	MPEG4- AVC/H.264, HEVC/H.265
Stabilization	EIS (Electronic Image Stabilization)
Colour Encoding	NTSC & PAL
Internal Storage	64 GB standard

Lights

Brightness	4000 Lumen LED
CCT	5500 K (Correlated Color Temperature)
Beam Angle	120°
Levels	3 Brightness Levels

Charger

ROV

Input: 100-240,50/60Hz,3.0 A Max

Output：12.6V=10A

RC

Input: 100-240,50/60Hz,0.5 A Max

Output: 5 V = 3A

Spool

Dimensions	238 mm x 213 mm x 205 mm
Capability	Hold up to 100m of tether (328ft)

Controller

Wireless	5GHz WiFi,11a,n,ac
Battery Life	Up to 4 hours
Copy & Download	Format in FAT32 & EXFAT (Up to 128GB)

Tether

Length	Standard 100 m (328ft) on Spool
Breaking Force	80 kgf

Arm Manipulator

Claw Opening size	140mm
Gripping force	5kgf
Supply Voltage	9~12V
Maximum Current	3 A

Packing List

Image	Item List	Quantity
	FIFISH V6s Underwater Robot	x1
	Remote Controller	x1
	Kevlar Tether	x1
	Underwater Robot Charger	x1
	Remote Control Charger	x1
